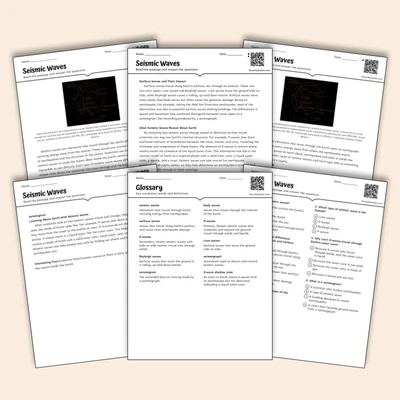

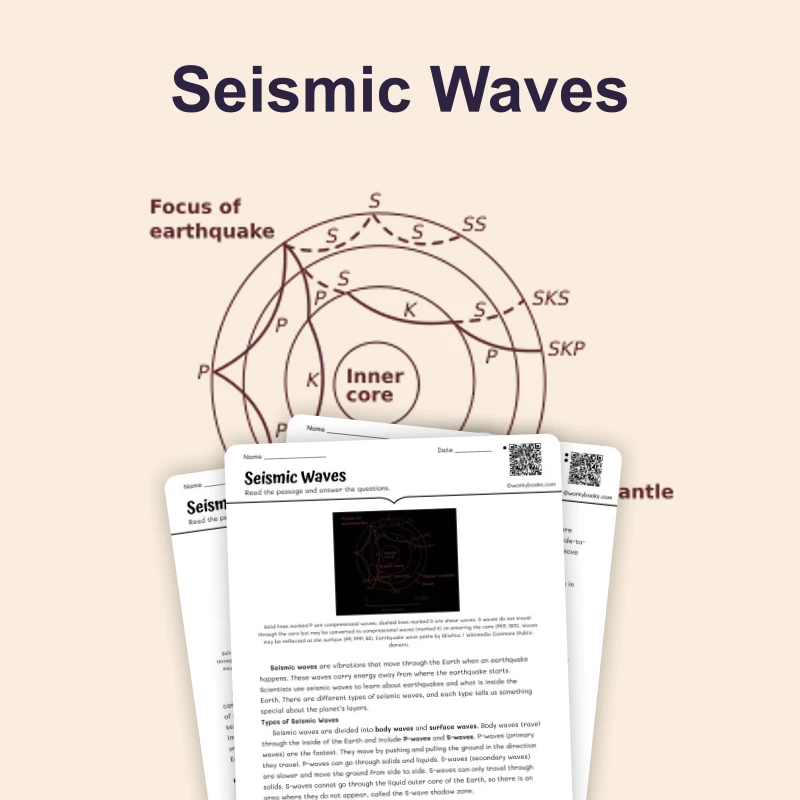

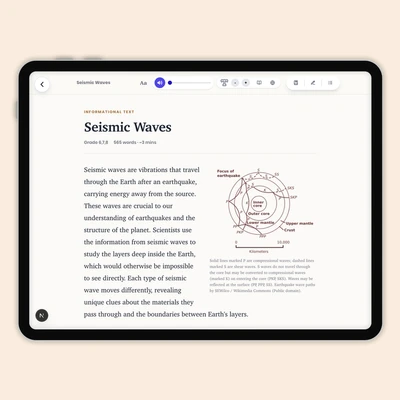

This comprehensive middle school passage introduces students to seismic waves, the energy released during earthquakes. Aligned with NGSS MS-ESS2-2 and MS-ESS3-2, it explains the difference between body waves (P-waves and S-waves) and surface waves (Love and Rayleigh waves), how these waves travel through Earth’s layers, and how they provide clues about Earth's interior structure. The reading also covers how seismographs and seismograms work and why surface waves cause the most damage. It incorporates academic vocabulary, scientific process thinking, and real-world applications, including earthquake safety and technological advances. The resource includes an English and Spanish version, a differentiated passage for diverse learners, a glossary, multiple-choice questions, writing prompts, and graphic organizers. Audio integration supports diverse learning needs. Ideal for use in classrooms studying Earth science, geology, or natural disasters, this passage helps students connect seismic waves to broader scientific principles and critical thinking about cause and effect.

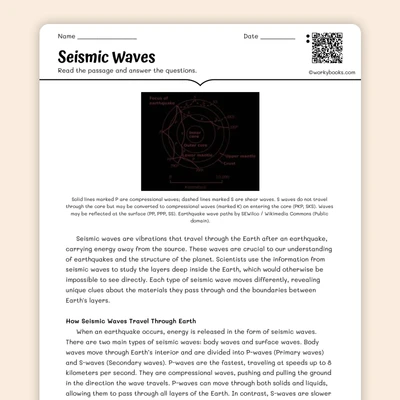

CONTENT PREVIEW

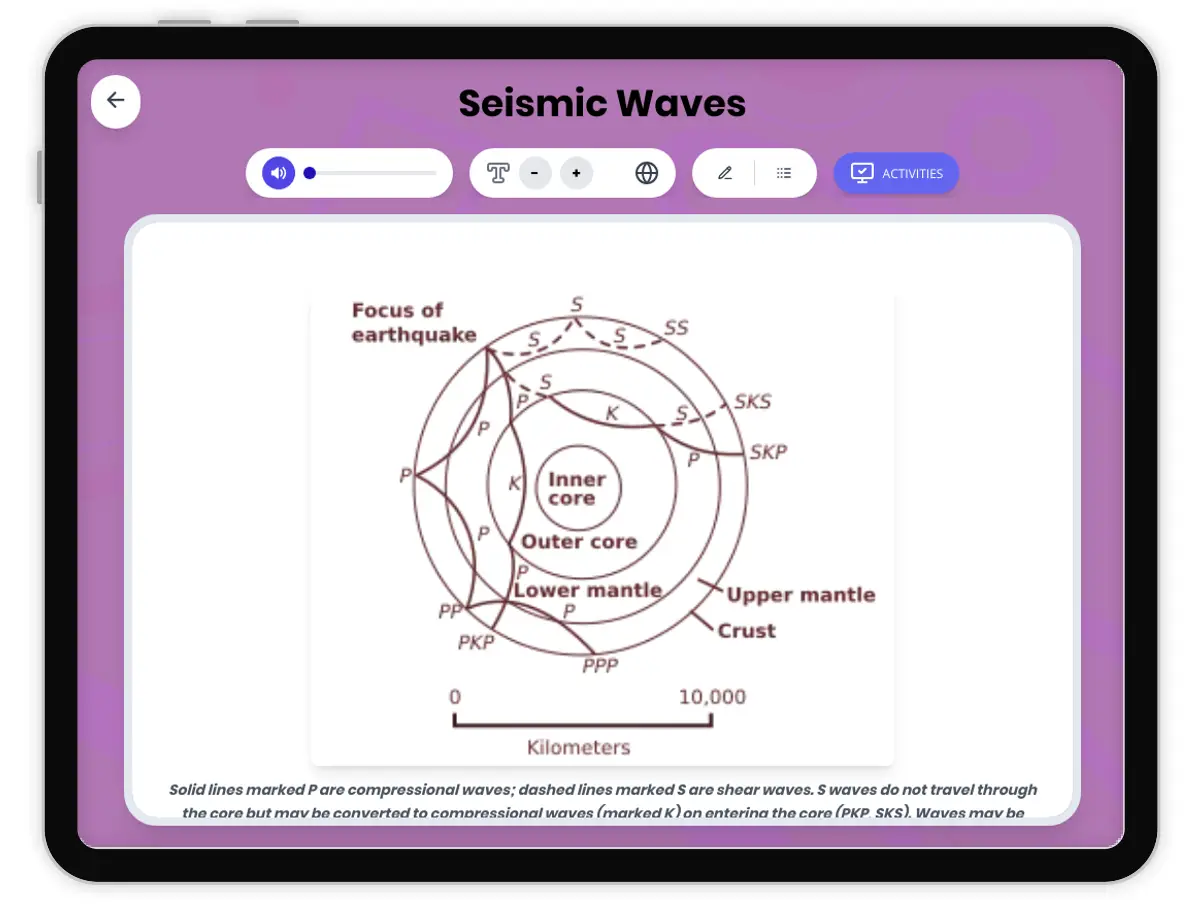

Solid lines marked P are compressional waves; dashed lines marked S are shear waves. S waves do not travel through the core but may be converted to compressional waves (marked K) on entering the core (PKP, SKS). Waves may be reflected at the surface (PP, PPP, SS). Earthquake wave paths by SEWilco / Wikimedia Commons (Public domain).

Seismic waves are vibrations that travel through the Earth after an earthquake, carrying energy away from the source. These waves are crucial to our understanding of earthquakes and the structure of the planet. Scientists use the information from seismic waves to study the layers deep inside the Earth, which would otherwise be impossible to see directly. Each type of seismic wave moves differently, revealing unique clues about the materials they pass through and the boundaries between Earth's layers.

How Seismic Waves Travel Through Earth

When an earthquake occurs, energy is released in the form of seismic waves. There are two main types of seismic waves: body waves and surface waves. Body waves move through Earth’s interior and are divided into P-waves (Primary waves) and S-waves (Secondary waves). P-waves are the fastest, traveling at speeds up to 8 kilometers per second. They are compressional waves, pushing and pulling the ground in the direction the wave travels. P-waves can move through both solids and liquids, allowing them to pass through all layers of the Earth. In contrast, S-waves are slower and move with a side-to-side, or shear, motion. S-waves only travel through solids, so they cannot pass through Earth's liquid outer core. This creates an S-wave shadow zone on the opposite side of the planet from an earthquake, helping scientists infer that the outer core is liquid.

Surface Waves and Their Impact

Surface waves travel along Earth's surface, not through its interior. There are two main types: Love waves and Rayleigh waves. Love waves move the ground side-to-side, while Rayleigh waves cause a rolling, up-and-down motion. Surface waves move more slowly than body waves but often cause the greatest damage during an earthquake. For example, during the 1906 San Francisco earthquake, most of the destruction was due to powerful surface waves shaking buildings. The differences in speed and movement help scientists distinguish between wave types on a seismogram, the recording produced by a seismograph.

What Seismic Waves Reveal About Earth

By analyzing how seismic waves change speed or direction as they travel, scientists can map out Earth’s internal structure. For example, P-waves slow down and bend (refract) at boundaries between the crust, mantle, and core, revealing the thickness and composition of these layers. The absence of S-waves in certain areas clearly marks the presence of the liquid outer core. This information has led to the current model of Earth as a layered planet with a solid inner core, a liquid outer core, a mantle, and a crust. Seismic waves are also crucial for earthquake monitoring and public safety, as they help determine an earthquake’s location and strength quickly enough to issue warnings.

Seismic waves are not just a tool for studying Earth; they have practical benefits, too. Improved understanding of seismic waves has led to better building designs and early warning systems in earthquake-prone regions. This knowledge ultimately helps save lives and reduce damage from future earthquakes.

Interesting Fact:
In 2013, scientists detected seismic waves on Mars using special instruments, helping confirm that Mars also has a layered interior structure!

What are seismic waves?

Vibrations that travel through Earth from earthquakesWinds that blow across the Earth's surfaceLight waves from the sunCurrents in the ocean

Which type of seismic wave is the fastest?

Love wavesRayleigh wavesP-wavesS-waves

What is the main difference between body waves and surface waves?

Body waves travel through Earth's interior; surface waves travel along the surface.Body waves are slower than surface waves.Body waves cause more damage than surface waves.Surface waves travel through the core; body waves do not.

Why can't S-waves travel through Earth's outer core?

Because the outer core is made of gasBecause S-waves only travel through solids, and the outer core is liquidBecause S-waves are too fastBecause the outer core is too small

Which waves cause most of the earthquake damage?

P-wavesS-wavesBody wavesSurface waves

What is a seismogram?

A chart that records ground motion from a seismographA type of seismic waveA scientist who studies earthquakesA building designed to resist earthquakes

What does the S-wave shadow zone reveal about Earth's interior?

The presence of a liquid outer coreThe thickness of the crustThe type of rocks in the mantleThe speed of surface waves

If P-waves slow down and bend at certain boundaries, what does this tell scientists?

There are changes in Earth's layers or compositionThere are no earthquakes in that areaSurface waves are stronger thereThe crust is thinner everywhere

True or False: S-waves can travel through both solids and liquids.

TrueFalse

True or False: Seismographs help scientists detect and record seismic waves.

TrueFalse
