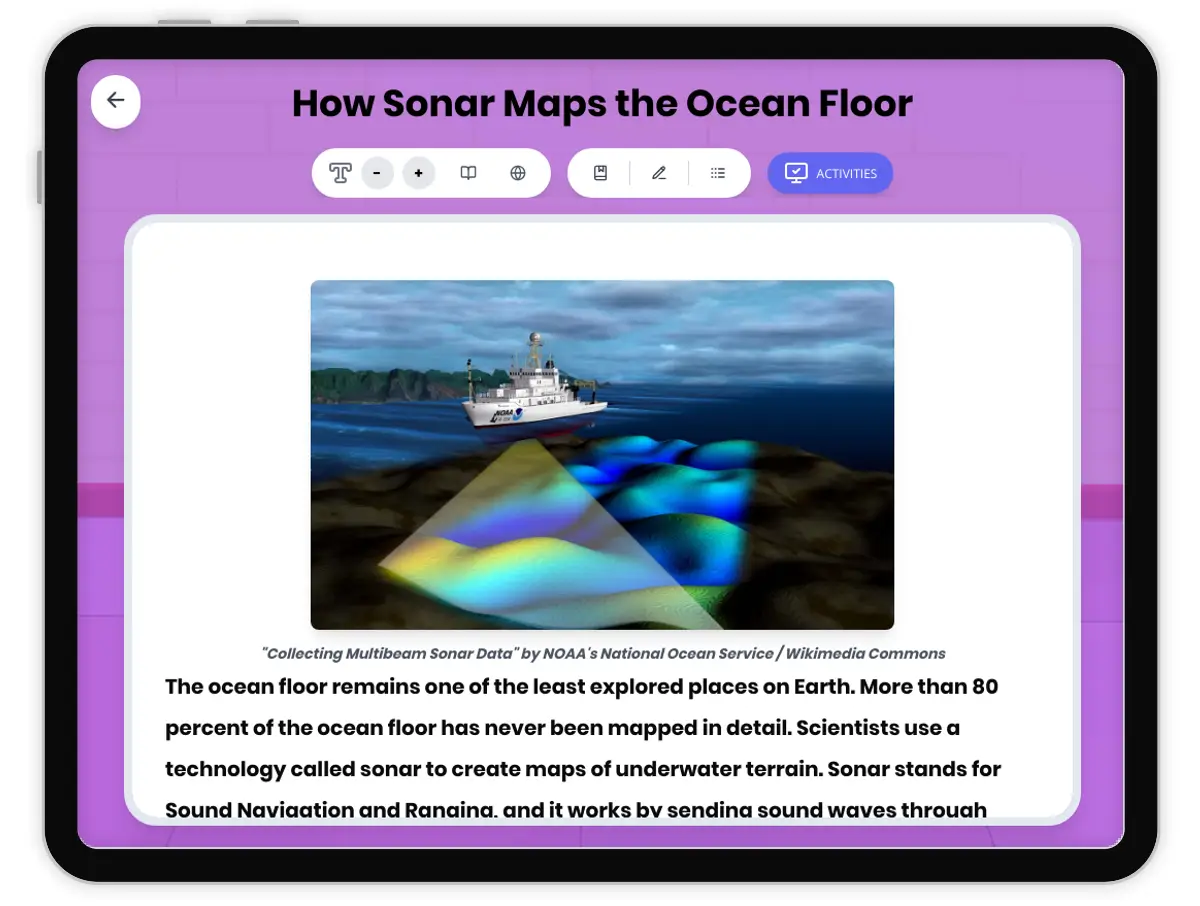

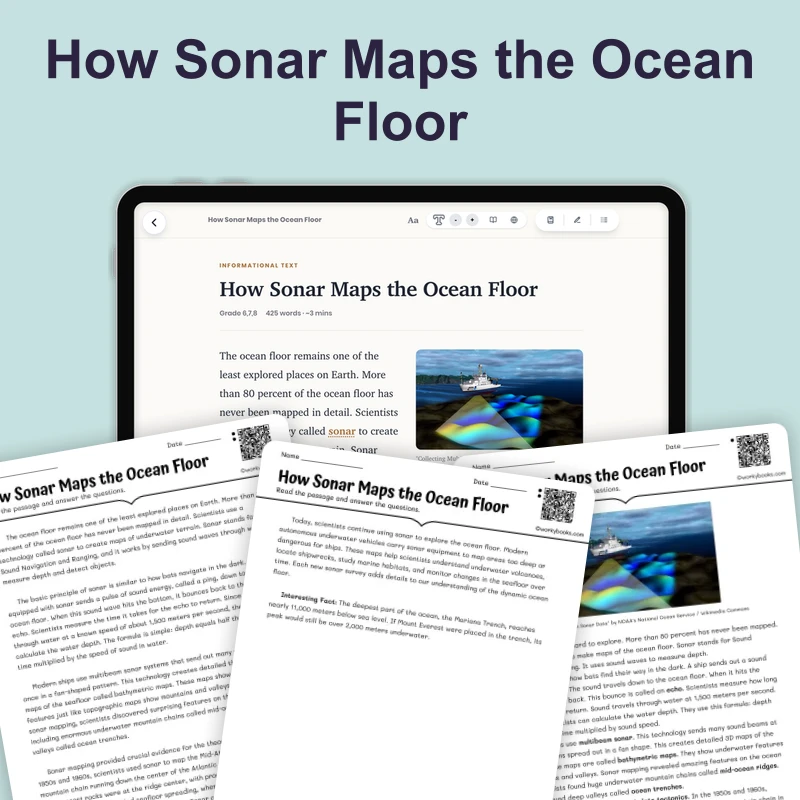

How Sonar Maps the Ocean Floor

Interactive passage with audio narration, comprehension questions, and printable PDF.

No ratings yet

Just this resource

$1.50

One-time purchase

Best value

Unlock everything

$49.99$29.99/yr

40% off until Aug 1 — 6,000+ resources

Unlock above to use these actions

Format: Interactive (Online), Printable (PDF)
Grades: 678
Subjects: scienceela
Standards: MS-ESS2-4
Languages: English, Spanish

Send Feedback / Report an Issue

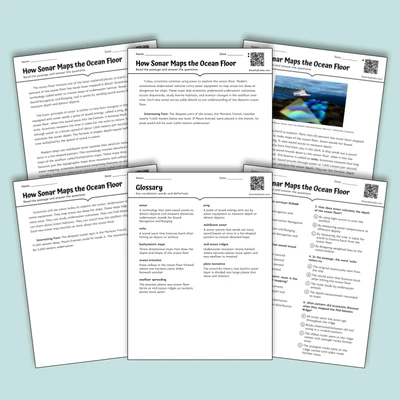

What's included

Reading passage

Reading comprehension

Audio narration

With word word highlighting

Comprehension quiz

Auto-graded

Writing activity

Open-ended response

Glossary & flashcards

Vocabulary practice

Differentiated version

Adapted for varied levels

Spanish translation

Bilingual support

About this reader

This comprehensive middle school science reading passage explores how sonar technology maps the ocean floor using sound waves. Students learn about the process of echolocation, bathymetry, and how sonar reveals underwater features like mid-ocean ridges and deep ocean trenches. The passage connects sonar mapping to the discovery of plate tectonic evidence and seafloor spreading, aligning with NGSS standard MS-ESS2-4. Audio-integrated content includes a grade-level passage, simplified differentiated version for struggling readers, Spanish translations, glossary of key scientific terms, multiple-choice comprehension questions, writing activities, and graphic organizers. Students explore how scientists use this technology to study Earth's least-known surface and gather evidence for the theory of plate tectonics. The materials support diverse learners through multiple formats and scaffolded activities that build understanding of how technology enables scientific discovery.

Written by Workybooks TeamPublished by Workybooks

Sample passage and quiz content

CONTENT PREVIEW

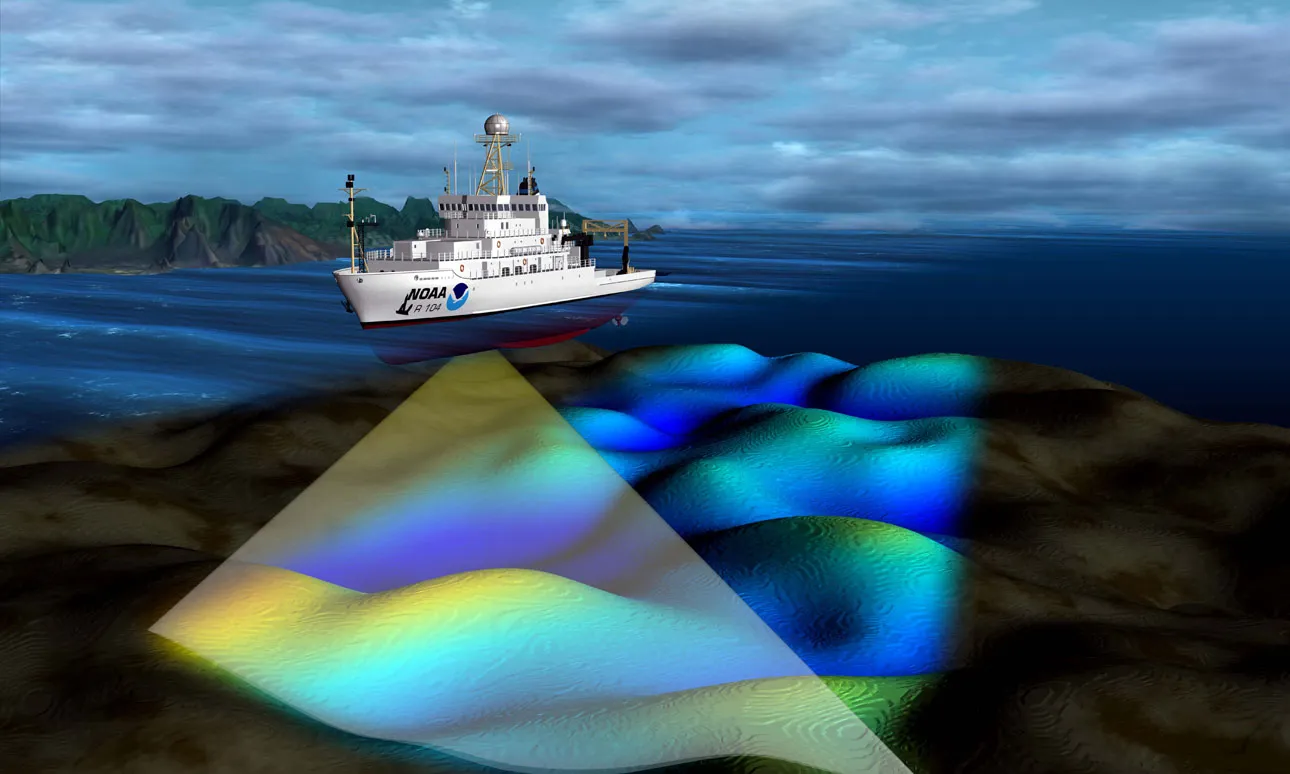

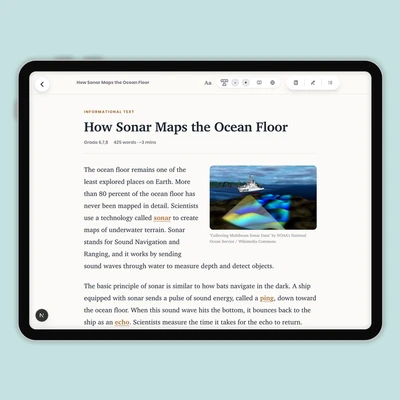

"Collecting Multibeam Sonar Data" by NOAA's National Ocean Service / Wikimedia Commons

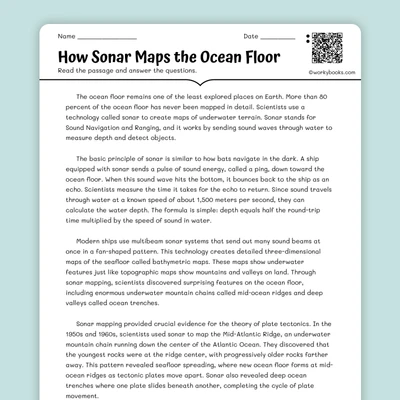

The ocean floor remains one of the least explored places on Earth. More than 80 percent of the ocean floor has never been mapped in detail. Scientists use a technology called sonar to create maps of underwater terrain. Sonar stands for Sound Navigation and Ranging, and it works by sending sound waves through water to measure depth and detect objects.

The basic principle of sonar is similar to how bats navigate in the dark. A ship equipped with sonar sends a pulse of sound energy, called a ping, down toward the ocean floor. When this sound wave hits the bottom, it bounces back to the ship as an echo. Scientists measure the time it takes for the echo to return. Since sound travels through water at a known speed of about 1,500 meters per second, they can calculate the water depth. The formula is simple: depth equals half the round-trip time multiplied by the speed of sound in water.

Modern ships use multibeam sonar systems that send out many sound beams at once in a fan-shaped pattern. This technology creates detailed three-dimensional maps of the seafloor called bathymetric maps. These maps show underwater features just like topographic maps show mountains and valleys on land. Through sonar mapping, scientists discovered surprising features on the ocean floor, including enormous underwater mountain chains called mid-ocean ridges and deep valleys called ocean trenches.

Sonar mapping provided crucial evidence for the theory of plate tectonics. In the 1950s and 1960s, scientists used sonar to map the Mid-Atlantic Ridge, an underwater mountain chain running down the center of the Atlantic Ocean. They discovered that the youngest rocks were at the ridge center, with progressively older rocks farther away. This pattern revealed seafloor spreading, where new ocean floor forms at mid-ocean ridges as tectonic plates move apart. Sonar also revealed deep ocean trenches where one plate slides beneath another, completing the cycle of plate movement.

Today, scientists continue using sonar to explore the ocean floor. Modern autonomous underwater vehicles carry sonar equipment to map areas too deep or dangerous for ships. These maps help scientists understand underwater volcanoes, locate shipwrecks, study marine habitats, and monitor changes in the seafloor over time. Each new sonar survey adds details to our understanding of the dynamic ocean floor.

Interesting Fact: The deepest part of the ocean, the Mariana Trench, reaches nearly 11,000 meters below sea level. If Mount Everest were placed in the trench, its peak would still be over 2,000 meters underwater.

What does the acronym SONAR stand for?

Sound Navigation and RangingScientific Ocean Navigation and ResearchSea Object Navigation and RecordingSubmarine Observation Navigation and Radar

How does sonar calculate the depth of the ocean floor?

By measuring water temperature at different depthsBy measuring the time it takes for sound to bounce back from the ocean floorBy using light waves to scan the seafloorBy dropping weighted lines to the ocean bottom

At what speed does sound travel through water?

500 meters per second1,000 meters per second1,500 meters per second2,000 meters per second

In the passage, the word 'echo' refers to:

The original sound pulse sent from the shipThe sound wave that bounces back after hitting the ocean floorThe noise made by underwater animalsThe depth measurement recorded on maps

What does 'bathymetric' mean in the context of ocean floor mapping?

Related to ocean temperatureRelated to ocean depth and seafloor shapeRelated to ocean currentsRelated to marine life distribution

What pattern did scientists discover when they mapped the Mid-Atlantic Ridge?

All rocks were the same age throughout the ridgeThe oldest rocks were at the ridge center with younger rocks farther awayThe youngest rocks were at the ridge center with older rocks farther awayRocks alternated between old and young in a random pattern

Based on the passage, what can you infer about the relationship between sonar mapping and the theory of plate tectonics?

Sonar mapping disproved the theory of plate tectonicsSonar mapping had no effect on understanding plate tectonicsSonar mapping provided evidence that supported the theory of plate tectonicsSonar mapping was developed after plate tectonics was fully understood

Why is multibeam sonar more effective than single-beam sonar for mapping the ocean floor?

It uses light instead of soundIt can map larger areas more quickly by sending multiple sound beams at onceIt works better in shallow waterIt doesn't require a ship to operate

If a ship sends a sonar ping and receives an echo 4 seconds later, and sound travels at 1,500 meters per second in water, what is the approximate depth?

1,500 meters3,000 meters4,500 meters6,000 meters

True or False: More than 80 percent of the ocean floor has been mapped in detail.

TrueFalse
