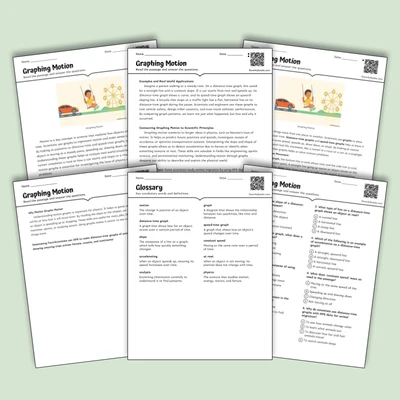

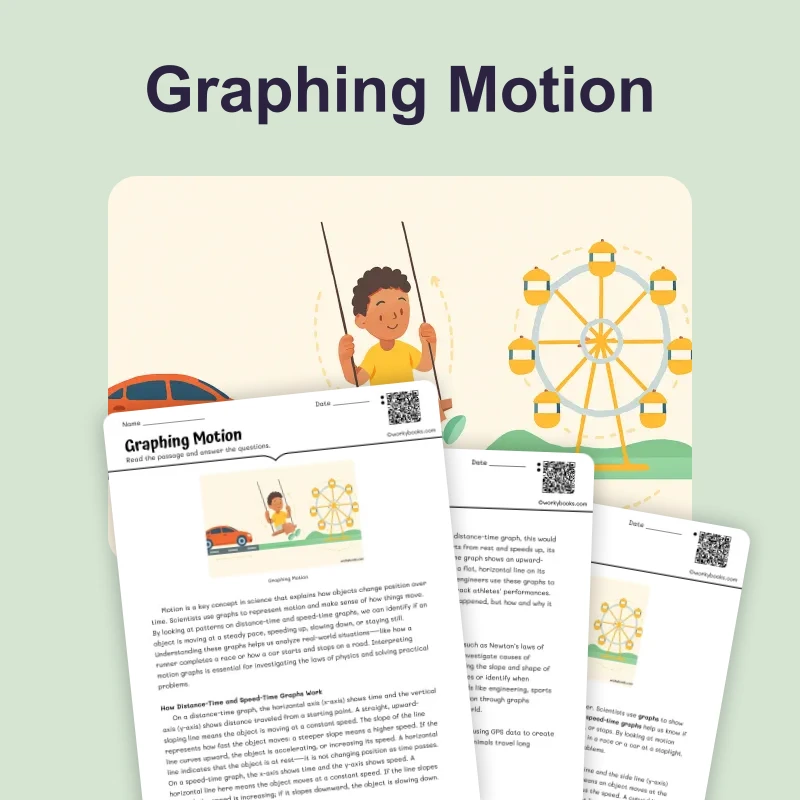

This passage introduces middle school students to the fundamental concepts of graphing motion, focusing on distance-time and speed-time graphs. Aligned with NGSS standard MS-PS2-2, it explains how to interpret the slope of these graphs to identify constant speed, acceleration, and periods of rest. Students will learn not only how to read these graphs but also how to create them based on real-world data. Through examples like a walking person, a racing car, and a stopped bicycle, the passage connects graph interpretation to everyday phenomena. The content emphasizes scientific thinking, showing how graph analysis reveals underlying mechanisms of motion. Activities include a glossary, differentiated version, Spanish translation, quizzes, writing prompts, and graphic organizers for deeper comprehension. The materials are audio-integrated, making them accessible for various learners, and are designed for grades 6-8 science classrooms.

CONTENT PREVIEW

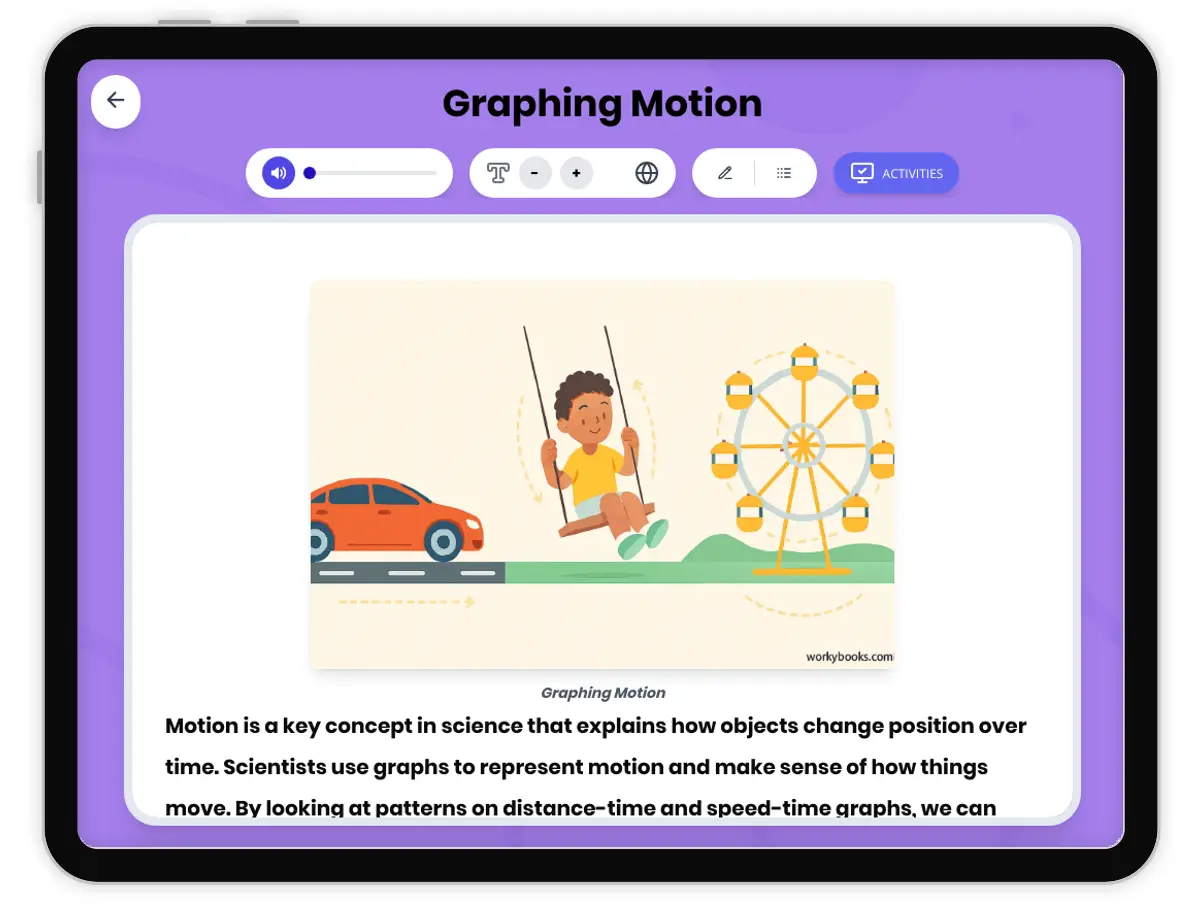

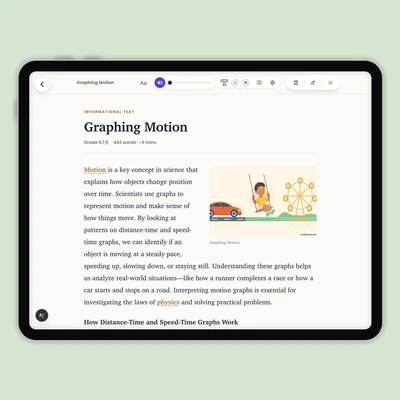

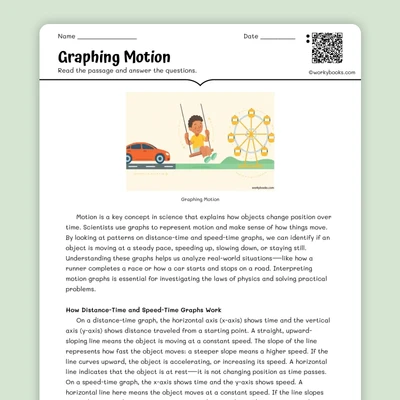

Motion is a key concept in science that explains how objects change position over time. Scientists use graphs to represent motion and make sense of how things move. By looking at patterns on distance-time and speed-time graphs, we can identify if an object is moving at a steady pace, speeding up, slowing down, or staying still. Understanding these graphs helps us analyze real-world situations—like how a runner completes a race or how a car starts and stops on a road. Interpreting motion graphs is essential for investigating the laws of physics and solving practical problems.

How Distance-Time and Speed-Time Graphs Work

On a distance-time graph, the horizontal axis (x-axis) shows time and the vertical axis (y-axis) shows distance traveled from a starting point. A straight, upward-sloping line means the object is moving at a constant speed. The slope of the line represents how fast the object moves: a steeper slope means a higher speed. If the line curves upward, the object is accelerating, or increasing its speed. A horizontal line indicates that the object is at rest—it is not changing position as time passes. On a speed-time graph, the x-axis shows time and the y-axis shows speed. A horizontal line here means the object moves at a constant speed. If the line slopes upward, the speed is increasing; if it slopes downward, the object is slowing down.

Examples and Real-World Applications

Imagine a person walking at a steady rate. On a distance-time graph, this would be a straight line with a constant slope. If a car starts from rest and speeds up, its distance-time graph shows a curve, and its speed-time graph shows an upward-sloping line. A bicycle that stops at a traffic light has a flat, horizontal line on its distance-time graph during the pause. Scientists and engineers use these graphs to test vehicle safety, design roller coasters, and even track athletes’ performances. By comparing graph patterns, we learn not just what happened, but how and why it occurred.

Connecting Graphing Motion to Scientific Principles

Graphing motion connects to larger ideas in physics, such as Newton’s laws of motion. It helps us predict future positions and speeds, investigate causes of accidents, or optimize transportation systems. Interpreting the slope and shape of these graphs allows us to detect acceleration due to forces or identify when something remains at rest. These skills are valuable in fields like engineering, sports science, and environmental monitoring. Understanding motion through graphs deepens our ability to describe and explain the physical world.

Interesting Fact: Some scientists study animal migration by using GPS data to create distance-time graphs, revealing surprising patterns in how animals travel long distances!

What does the slope of a distance-time graph represent?

The speed of the objectThe total distance traveledThe object's directionThe time taken

What type of line on a distance-time graph shows an object at rest?

A steep lineA curved lineA horizontal lineA downward line

On a speed-time graph, what does a horizontal line mean?

Speed is changingSpeed is constantObject is at restDistance is increasing

Which of the following is an example of acceleration on a distance-time graph?

A straight, upward lineA horizontal lineA curved, upward lineA straight, downward line

What is the main purpose of using motion graphs?

To predict weatherTo explain how things moveTo solve math problemsTo measure temperature

What does 'constant speed' mean as used in the passage?

Moving at the same speed all the timeSpeeding up and slowing downNot moving at allChanging direction
